Freight Elevator

Freight Elevator

We provide a complete range of freight elevators of different load carrying capacity.
A freight elevator in your building will make handling of goods easy and help in enhancing production.
We supply freight elevators with dust proof equipment as per requirements of our customers.

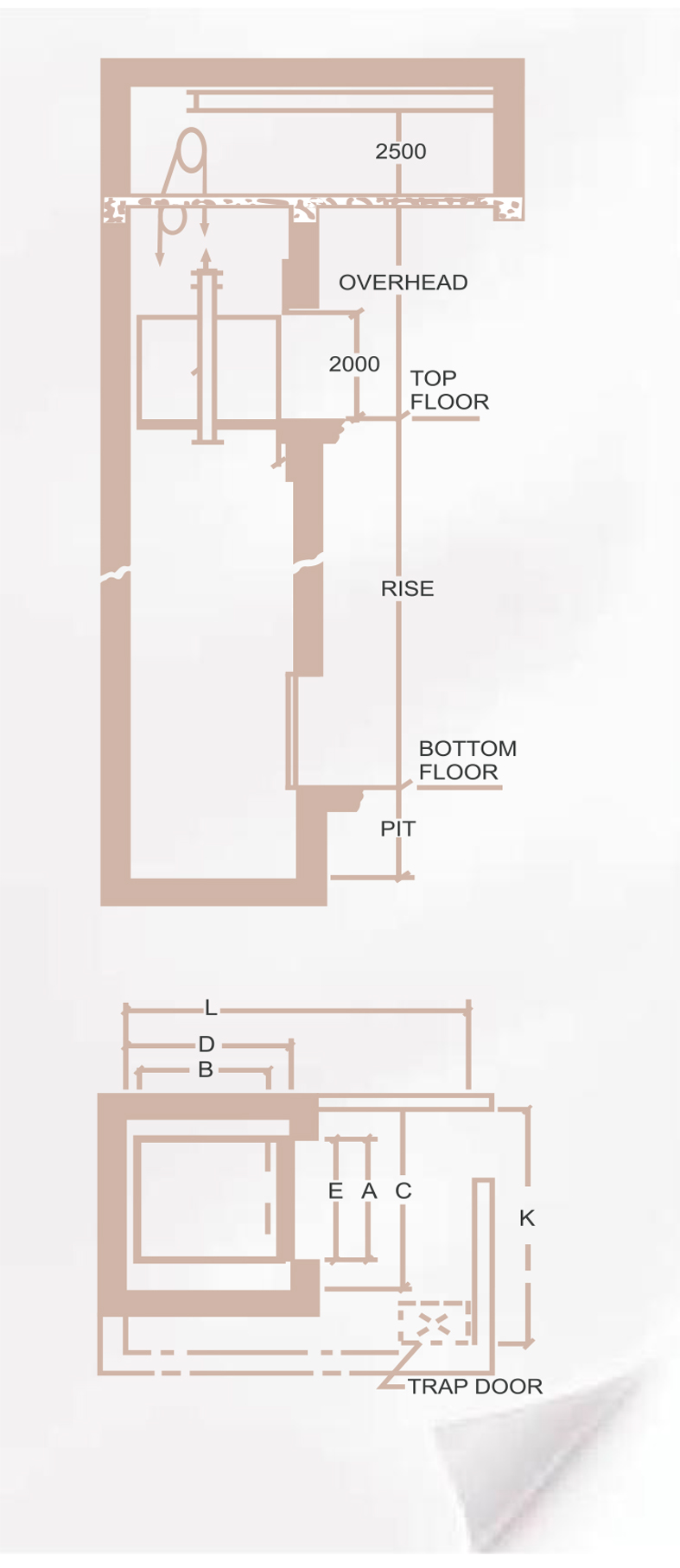

TABLE OF DIMENSION

LOAD (KG) CAR-INSIDE (mm) LIFT-WELL (mm) ENTRANCE (mm) MACHINE ROOM (mm) LOAD RANGE (KG) SPEED (MPS) PIT DEPTH (mm) OVERHEAD (mm)
A B C D E K L
500 1100 1200 1900 1600 1100 2500 4100 500–3000
1000 1400 1800 2300 2200 1400 2500 4700
2000 1700 2500 2800 2900 1700 2600 5400
3000 2000 3000 2900 3420 2000 2900 5900
4000 2500 3000 3400 3400 2500 3400 5900 4000–5000
5000 2500 2600 3500 4300 2500 3400 6800
