Passenger Elevator

We are manufacturing all types of passenger lifts of different capacity and speed.
Our latest passenger lifts comprises of VVVF Controller with sophisticated steel cage & Latest electronic components for minimum and easy maintenance as well as and low power consumption as per today’s need.
We offer different types of cabins using material such as M.S., S.S., Wooden etc.,
We provide latest version of Auto door, Manual collapsible gate, Imperforated doors for cabin and landings etc.

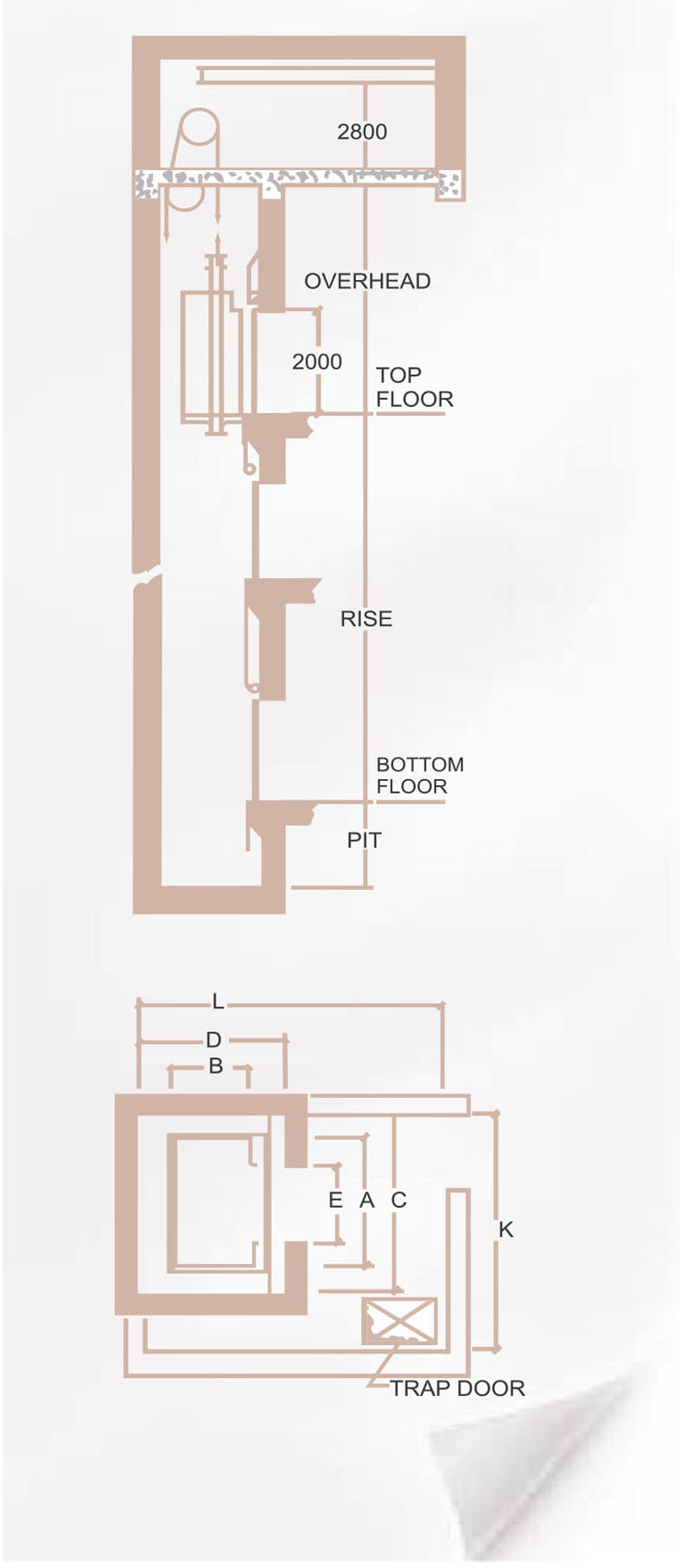

TABLE OF DIMENSION

PERSONS LOAD CAR-INSIDE (mm) LIFT-WELL (mm) ENTRANCE (mm) MACHINE ROOM (mm) SPEED MPS PIT DEPTH OVERHEAD
(KG) A B C D E K L
4 272 810 920 1200 1350 700 1650 3500
5 340 1150 835 1600 1200 760 1600 3350
6 408 1150 960 1600 1525 700 1600 3550
8 544 1300 1100 1800 1800 800 2250 4100
10 680 1350 1300 1800 2000 800 3300 4500
13 884 2000 1100 2500 1900 900 4000 4400
16 1088 2000 1300 2500 2100 1000 4000 4600
20 1360 2000 1550 2500 2400 1000 4000 4900
