Hydraulic Elevator

We manufacture hydraulic lifts of varied capacity and speed which are silent and smooth in operation.
Hydraulic lifts need only one wall for load bearing so load on the hoist way structure is very limited.
There are no counter weights in the hoist way so the hoist way required power pack unit with hydraulic valves having additional features makes it soft-stop and very safe in operation.

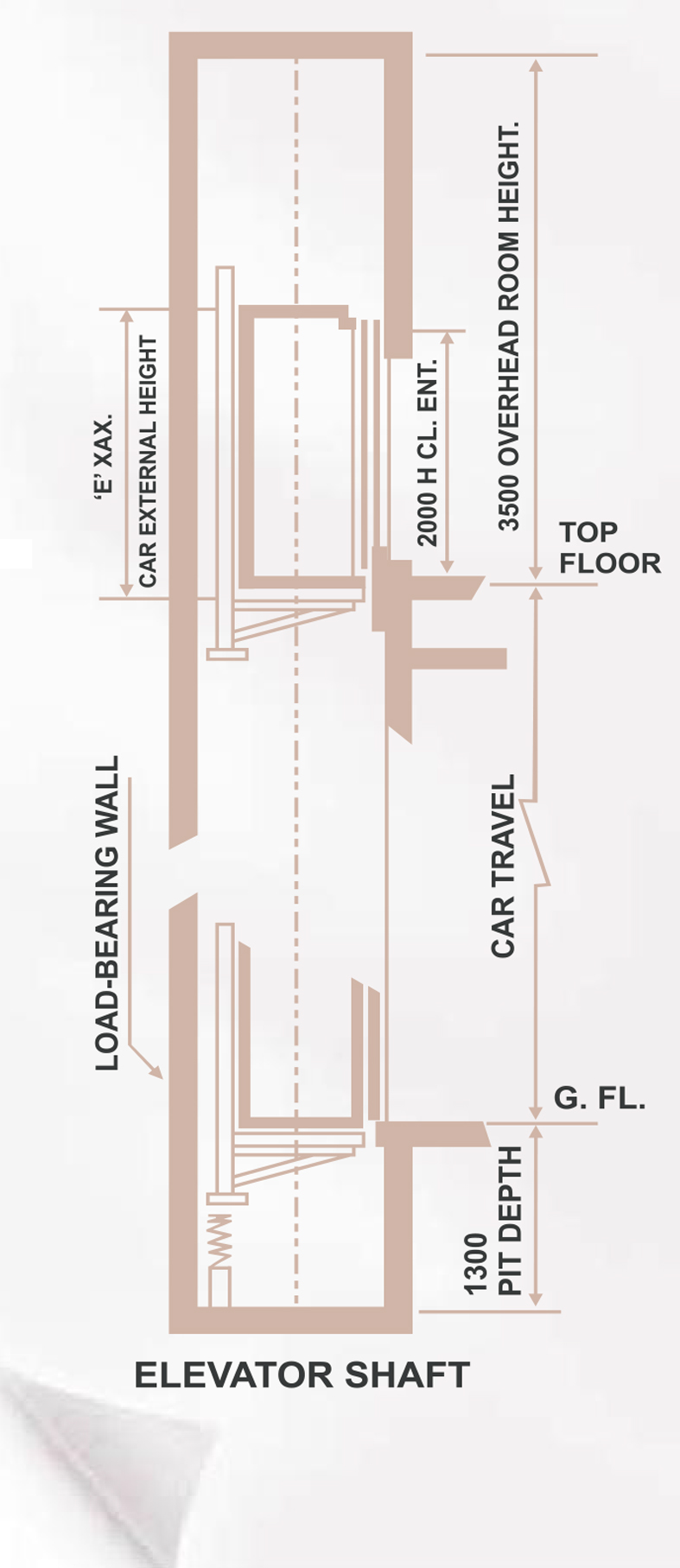

TABLE OF DIMENSION

S. No. CAPACITY PERS. CAPACITY KG. TYPE OF DOOR ‘A’+25+0 ‘B’ MIN. ‘C’ MAX. ‘D’ MAX. ‘E’ MAX. ‘W’ ‘L’
1 4 272 MD 365 1200 960 1200 2380 2000 2000
AD 365 1200 960 1200 2380 2000 2000
MD 365 1200 960 1200 2380 2000 2000
AD 365 1360 1200 1360 2380 2000 2000
2 5 340 MD 365 1200 960 1200 2380 2000 2000
AD 365 1360 1200 1360 2380 2000 2000
3 6 408 MD 365 1200 960 1200 2380 2000 2000
AD 365 1360 1200 1360 2380 2000 2000
4 8 544 MD 370 1360 1200 1465 2350 2000 2000
AD 370 1360 1200 1465 2350 2000 2000
5 10 680 MD 370 1700 1200 1465 2350 2000 2000
AD 370 1700 1200 1465 2350 2000 2000
6 13 884 MD 445 2660 1700 1800 2350 2200 2200
AD 445 2660 1700 1800 2350 2200 2200
7 20 1360 MD 490 2400 2050 2200 2450 2500 2500
AD 490 2400 2050 2200 2450 2500 2500
8 - - MD 445 2660 1700 1800 2350 2000 2000
9 - 2000 MD 490 2400 2050 2200 2450 2000 2000
